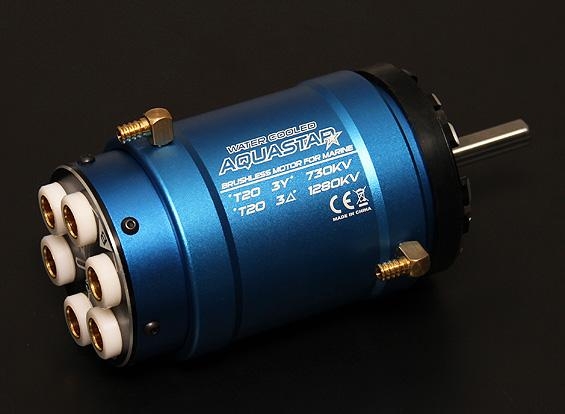

The Turnigy AquaStar Sensorless Brushless Motors offer outstanding performance for your boat at an incredible price!
Featuring a quality CNC machined billet T6 aluminum motor can, hand-wound high purity copper windings and powerful sintered neodymium magnet, you wont find a better priced motor of this caliber anywhere else! It even features a billet aluminum water cooling jacket pre-installed.

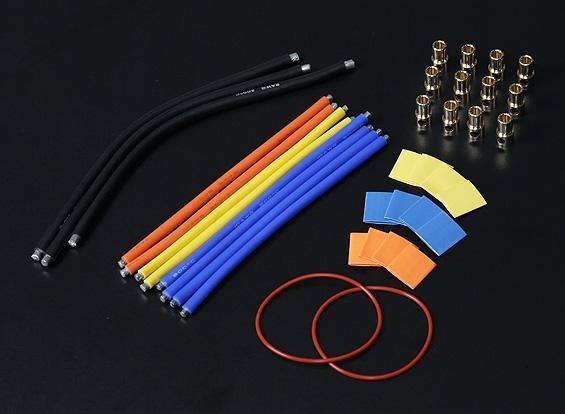

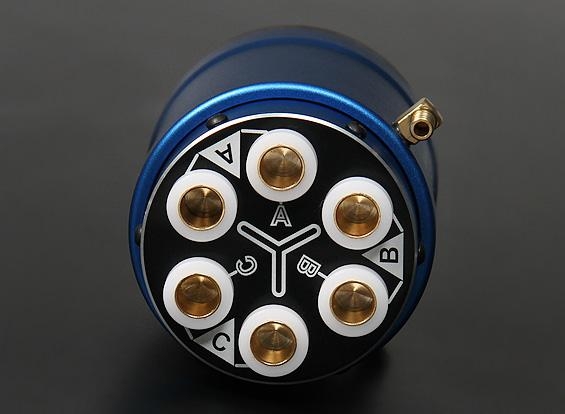

This unique motor has two configuration options allowing you adjust the KV to your needs. When wired in "Y" configuration, it operates at 730KV. Switch the wire leads to the "δ" configuration and it will be 1280KV. The adjustable phase wire leads w/connectors are included.
The AquaStar brushless motors are a great choice for your deep-V, hydro or catamaran race boat and will be sure to leave the competition in your wake!
Features:
• Dual Configuration Allowing for 730KV or 1280KV Operation
• CNC Machined Billet T6 Aluminum Motor Can
• High Purity Copper Windings
• Powerful Sintered Neodymium Magnet
• Precision Engineered for Maximum Energy Conversion
• Water Cooling Jacket Pre-installed
Specs:
RPM/v: 730kv @ "Y" config. / 1280kv @ "δ" config.
Max voltage: 41V (11S)
Max Current: 128A @ "Y" 730kv / 229A @ "δ" 1280kv
Max Watts: 5280w
Resistance: 0.0132ohm @ "Y" 730kv / 0.0046 @ "δ" 1280kv
No Load Current: 3.2A @ "Y" 730kv / 4.2 @ "δ" 1280kv
Can Diameter: 56mm (actual motor diameter)
Can Diameter inc. Water Jacket: 63mm
Length: 102mm
Shaft Size: 8mm
Weight: 971g
