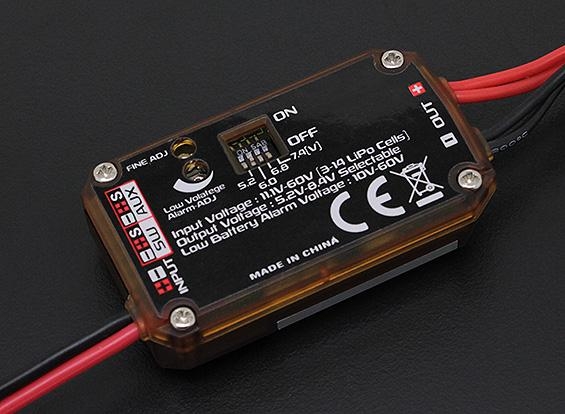

The Turnigy dlux 10A HV switching BEC provides up to 10A continuous current (15A peak) at a selectable 5.2V, 6.0V (default), 6.8V, 7.4V or 8.4V output. This is great for powering your electronics on both helicopters and fixed-wing models. Thanks to the wide output voltage range, the Turnigy dlux HV SBEC can handle just about any type of servo. The 10~60V input allows for use with 3~14S lipoly batteries making this unit ideal for use on large helicopter/fixed-wing models running high voltage power systems.

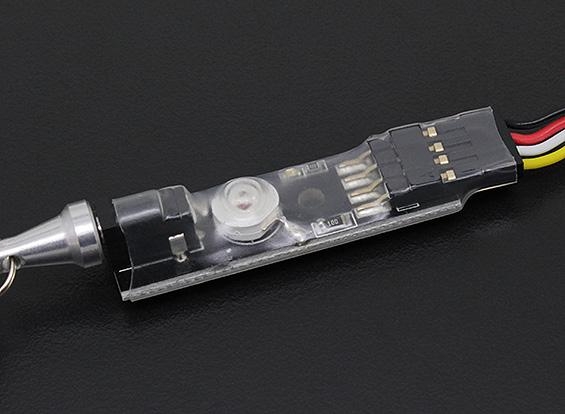

This device also includes an optional low voltage alarm/LED board which can easily alert you to a low voltage condition of your input battery. It features a super bright white LED that can be seen even during sunny conditions. A great way to monitor your input battery's status.
Features:
• Stable, reliable power supply for your servos/receiver
• 10~60V input allowing for use with 3~14S lipoly batteries
• 10A continuous/15A peak servo current capability
• Dual power output leads
• Selectable servo output voltage 5.2V/6V/6.8V/7.4V/8.4V
• Optional adjustable low voltage alarm/LED
• Thermal and current overload protection
Specs:
Input Voltage: 3~14S Lipoly (10~60V)
Output Voltage: 5.2V/6.0V/6.8V/7.4V/8.4V selectable
Output Current: 10A @ 6V continuous (15A @ 6V peak)
Adjustable Low Voltage Alarm: 10~60V
Switch Type: Fail Safe (fail safe on) pin-flag contactless type
Power Connector: Input: bare leads / Output: JR style plug x 2
Dimensions: 15.7 x 31 x 54mm
Weight: 45g
