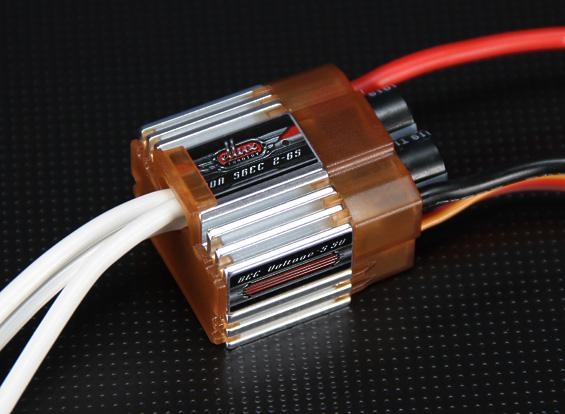

Turnigy® dlux SBEC ESCs have set a new bench mark in quality and performance. Each ESC uses a twin PCB design separating the motor power supply, MCU and SBEC. This design allows for optimum component layout on each PCB and provides the ideal configuration for heat dissipation and thermal efficiency. Both PCBs are enclosed in a full aluminum heat sink casing to ensure maximum heat dispersion. All Turnigy dlux ESCs can be programmed via a programing card or by transmitter. Clear and easy to understand instructions are included.
Spec.
Max Cont. Current: 40A
Max Burst Current: 50A
Max BEC Current: 3A
BEC Voltage: 5.5v
LiPo: 2~6S
NiMH: 5~16 cells
Weight: 54 grams
Max RPM (2-pole): 200,000rpm
Size: 45.5 x 33 x 23mm
Motor Plug: Female 3.5mm bullet Connection
Battery Plug: Nil
Features.
Extremely low internal resistance
Very low operation temperature
Over temperature protection
APEC MoSfets (Taiwain)
Programming Options.
Battery Type: 2S~6S
Forward/Reverse
Soft Start
LV Cut off Type (Ignore, Reduce Power, Stop Motor)
LV Cut off setting (2.5~3.5v in 0.1v increments)
Timing (Auto, Very Low, Low, Normal, High, Very Hgh)
Switching (8,16kHz)
Factory Restore
Active RPM Control: On/Off (Governor Mode)
Default factory settings.
Brake: off
Battery: LiPo Auto Detect
Low Voltage: 3.2v (power down motor)
Timing: Auto
Frequency: 8KHz
