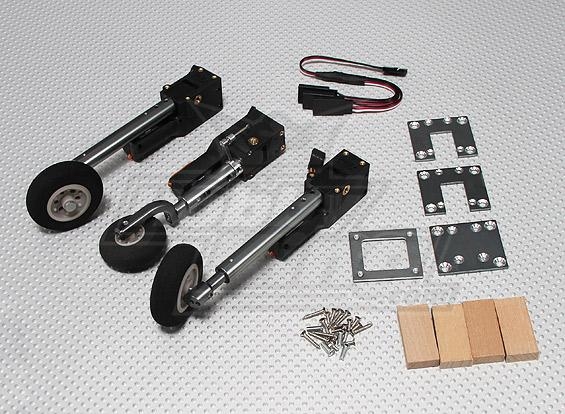

Turnigy DSR-C Retract System

Turnigy DSR Series electronic retract systems feature all metal gears and advanced micro controllers with an integrated circuit to automatically stop the retract and recover from jamming problems. The integrated circuit also protects against over-current draw. Turnigy DSR series retracts also feature working suspension, steerable nose wheel and all hardware required to install the retracts in your plane.

Spec:
Nose Wheel: 34x10mm
Nose Strut: 102mm (From pivot point to bottom of wheel)
Main Wheel: 40x12mm
Main Wheel Angle: 20deg
Main Strut: 120mm (From pivot point to bottom of wheel)
Mounting plate: 35x33mm
System weight: 185.5g (Inc all wires and hardware)
AUW Load: 3.4kg
Voltage: 4.8~6.0v
Current draw: 0.32A for 2 sec
