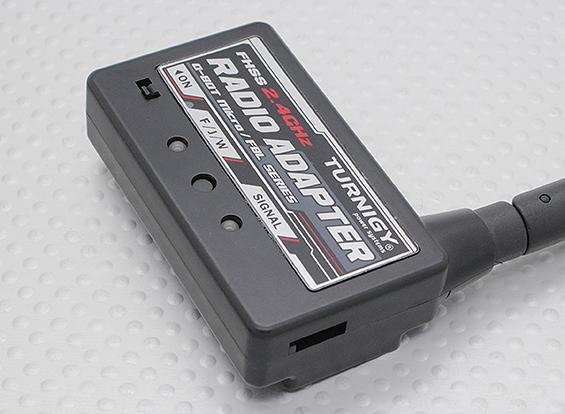

The all new Turnigy FHSS 2.4GHz transmitter module allows you to bind any trainer port enabled transmitter* with your FBL100 helicopter or Q-Bot Micro quadcopter. It works by using the trainer port's PPM signal from your transmitter.
Simply plug this module into your trainer port, select the signal type (F/J/W) and your then ready to bind with your FBL100 or Q-Bot micro. It's that simple!

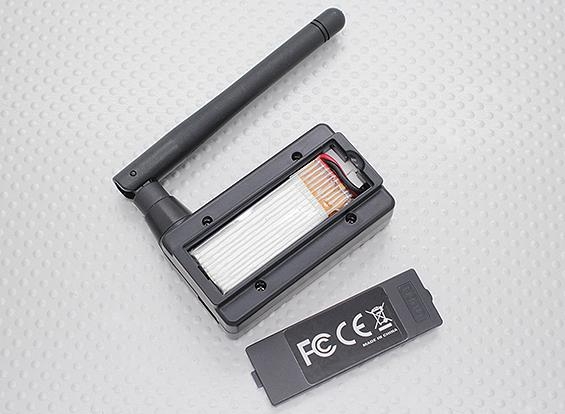

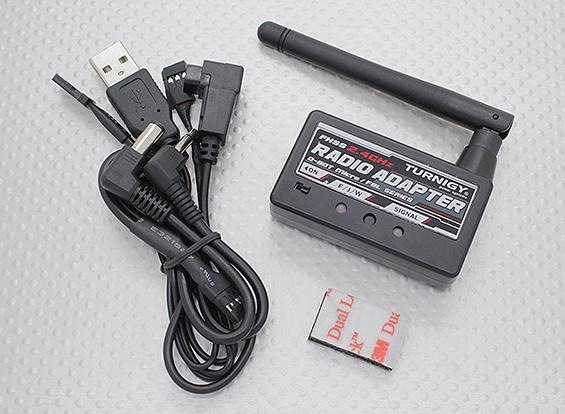

The Turnigy transmitter module includes an in-built 3.7V rechargeable lipoly battery for power but can also be powered from your transmitter's charge port when connected with the supplied power cable. If using the in-built battery, it can be easily recharged by the included USB cable.
Features:
• Compatible with any trainer port enabled transmitter*
• In-built 3.7V lipoly battery
• Capable of being powered from transmitter's charge jack
Specs:
Sealed Battery Specification: 3.7V Lipoly 120mAh
Operating Voltage: 5~12V DC
Operating Current: <100mA
Operating Frequency: 2402MHz~2477MHz
Spread Spectrum Mode: FHSS
Number of Frequency Channels: 20
Hopping Rate: 240 jump/s
*Note: Compatible transmitter must output PPM signal via the trainer port.
