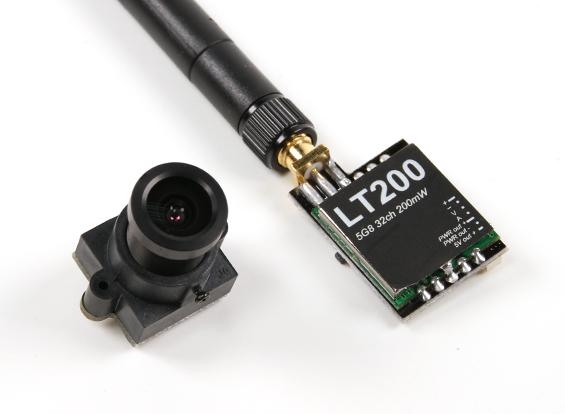

The Turnigy FPV200 set is a complete, high quality all in one transmitter and camera package that comes ready to mount in your chosen model.

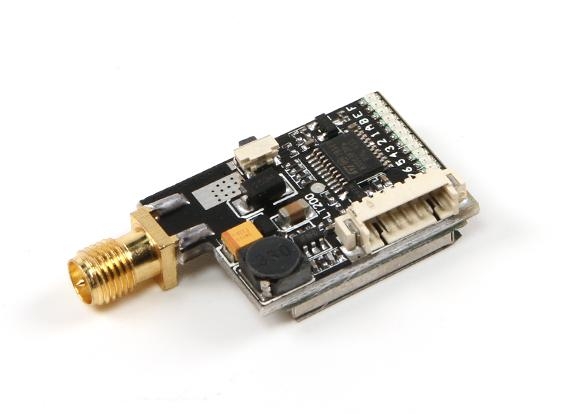

Complete with the LT200 is miniature high power video transmitter that packs 200mW of ultra-clean 5.8GHz power into a small robust unit. The LT200 has 32 available channels in the 5.8GHz band and weighs in at under 7g which makes it perfect for the high demands of 250 FPV racing where a clean, powerful system is essential.
Also included in the box is the Wide Angle 700TVL Mini FPV Camera with its 1/3" CMOS sensor that has been custom tuned for FPV use. This mini camera provides excellent video quality at low illumination and can be switched between NTSC and PAL as needed.

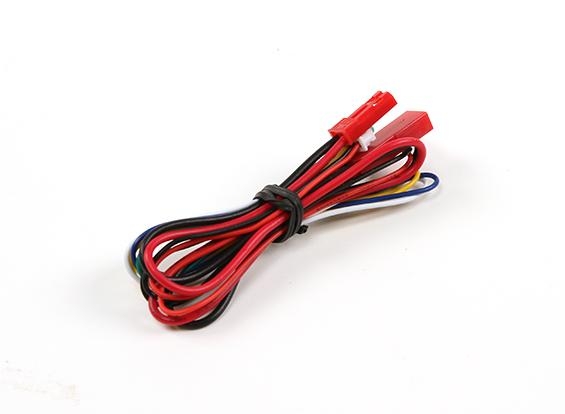

The provided wiring harness is ready to use and simply plugs into the camera and transmitter with power being supplied by either a suitably sized, JST equipped battery or by your flight control/distribution board.
For a great value, high performance, all-in-one FPV airborne package weighing in at under 32g complete the Turnigy FPV200 set is hard to beat!
Features:
• High power (200mW) micro transmitter
• 32 Channels
• Custom wiring harness
• Micro Sized
• Wide voltage range (7~23V)
• FPV tuned CMOS camera
• Lightweight
• Simple installation
Transmitter specs:
Transmitting Frequency: 5.6~5.9GHz
Operating Voltage: 7~23V
RF Output: 200mW
TV System: PAL/NTSC/SECAM auto
Connector: RP-SMA (NOT SMA)
Size: 29 x 20 x 8.5mm
Weight: 6.8g (without antenna and leads)
Operating Temperature: -10°C~+85°C
Channels:
Band A: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
Band B: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866
Band E: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
Band F: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
Camera specs:
Sensor: 1/3" CMOS > 700TVL
Format: NTSC/PAL
Horizontal Resolution: 700TVL
Lens: 2.6mm IR coated
Field of View: 127° diagonal 160° horizontal (ideal for a fixed camera)
Input Voltage: DC 3.6~5.5V (powered from VTX)
Power consumption: 60mA @ 5V
Operational temperature: -20~70°C
Connector Type: Mini Molex type plug
Dimensions: 29 x 24 x 17mm
Weight: 9.3g
Included:
LT200 FPV transmitter
Wide Angle 700TVL Mini FPV Camera
Custom wiring harness
Antenna
Manual
