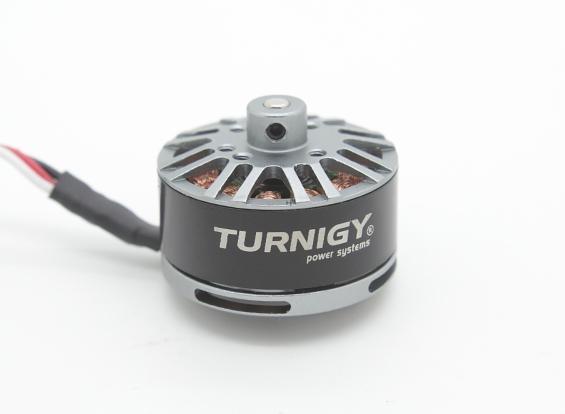

Turnigy GBM2808-80T Brushless Gimbal Motor (BLDC)

Turnigy is taking the DIY out of Brushless gimbal motors, with their purpose built pre-wound Star style (delta) motors. They come in a wide range of sizes to balance power vs weight to optimize your overall setup.

Turnigy Gimbal motors come pre-fitted with a standard female (JR style) connector, So wiring is as simple as plugging it in. It's a perfect match to our Brushless Gimbal Stabilization Board and IMU.

The 2208-80T is the perfect size for cameras around 100-200 grams (GoPro style).

specs:
Poles: 12N14P
KV(RPM/V): 45
Resistance: 14.6omh
Weight: 43g
Wire: 0.21mm
Termination method: Star 80 turns
Top holes center to center: 14mm
Top mount: M3 x 12mm center to center
bottom mount: M3 16x19mm

Prodotto ID: 922000037-0
