Introducing the brand new range of Turnigy Multistar ESC's!
These brushless speed controllers are primarily intended for use in Multi-rotor aircraft and are the key element to our new Modular Multi-rotor power systems.
This series of ESC's features a very smooth, linear throttle response, without sacrificing a rapid, crisp, response to any throttle input. Safety is not forgotten with all Multistar Esc's featuring adjustable battery LVC, stalled motor (overload) protection, signal loss shut-down and safe arming.
All Multistar series ESC's come pre-terminated with bullet connectors suited to the ESC's rated power handling. This allows for plug and play convenience by simply adding the appropriate battery supply splitter (3,4 or 6 ESC) and motor lead extensions from the Multistar modular accessory line. What could be simpler?
Multistar ESC's can utilise the Multistar programming card. All Multistar ESC's feature an ATmega MCU that opens the door to customisable firmware - for those so inclined!

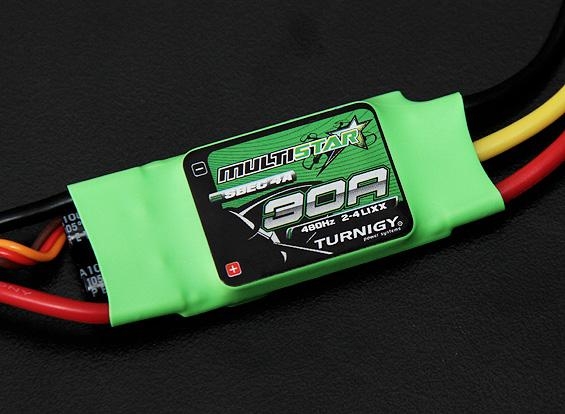

This 30 amp ESC is amongst our new modular Multi-rotor plug and play power system range, in total there are 5 ESC's, ranging from 10 – 45 amps.
Please refer to the related items below for a solder free multi-rotor power solution to suit your next multi-rotor project.
Details:
• Smooth and linear throttle control
• Fast response to throttle input
• Low-voltage cut-off
• Stalled motor protection
• Throttle signal lose protection
• Safe power-on (throttle lockout)
• Support 480Hz+ high refresh rates (up to 499hz)
• Compatible with programming card
Specs:
Constant Current: 30A
Input Voltage: 2-4 cells Lipoly
BEC: Yes (Switching)
BEC Output: 5.5V/4A
PWM: 8 KHz
Max RPM: 240,000rpm for 2 Poles Brushless Motor
PCB Size: 41mm x 24mm
Weight: 29g
