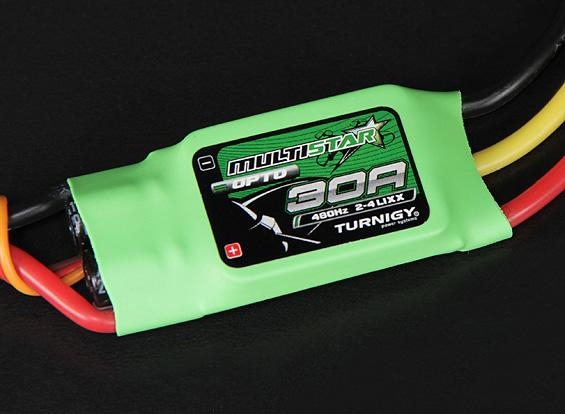

MultiStar ESCs are are a quality speed controller at a fantastic price! Designed for simple installation and easy setup these ESCs have proven to offer excellent performance when used in Multi-rotor applications. If your starting out in Multi-rotors and need an easy to install solution that is tested and proven to work with Multi-rotor craft then these speed controllers have you covered.
These ESC's features a very smooth yet linear throttle response, without sacrificing a rapid, crisp, response to any throttle input. Safety is not forgotten with all Multistar Esc's featuring adjustable battery LVC (set battery type to LiXX to disable LVC), stalled motor (overload) protection, signal loss shut-down and safe arming.

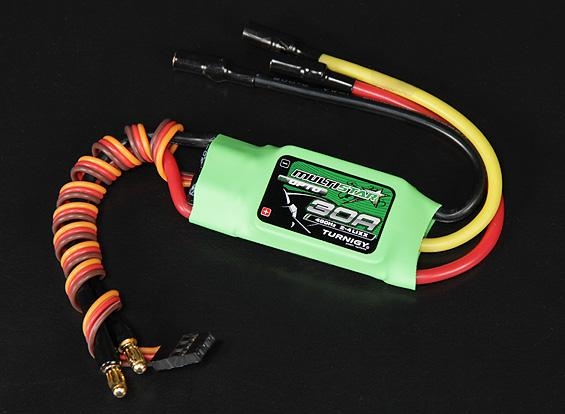

All Multistar series ESC's come with bullet connectors installed that are suited to the ESC's rated power handling. This allows for plug and play convenience by simply adding the appropriate battery supply splitter (3,4 or 6 ESC) and motor lead extensions from the Multistar modular accessory line. What could be simpler?
All Multistar ESC's feature an ATmega MCU that opens the door to customizable firmware - for those so inclined! or alternatively a programming card can be used with the installed software for quick and easy setup with the pre-flashed software.
Please refer to the related items below for a solder free multi-rotor power solution to suit your next multi-rotor project.
Details:
• Smooth and linear throttle control
• Fast response to throttle input
• Atmel MCU
• Stalled motor protection
• Throttle signal lose protection
• Safe power-on (throttle lockout)
• Support 480Hz+ high refresh rates (up to 499hz)
• Compatible with programming card
Specs:
Constant Current: 30A
Input Voltage: 2-4 cells Lipoly
BEC: None (OPTO)
PWM: 8 KHz
Max RPM: 240,000rpm for 2 Poles Brushless Motor
PCB Size: 41mm x 24mm
Weight: 32g
