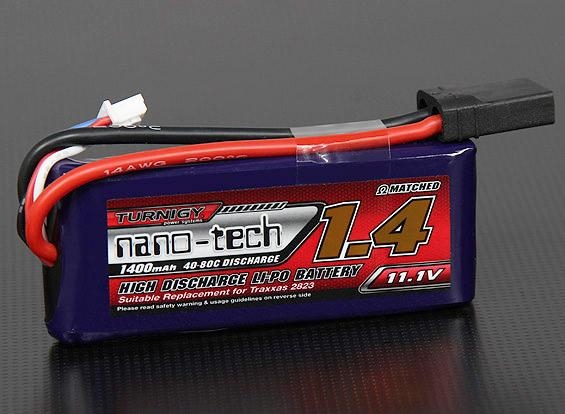

*High performance replacement for Traxxas TRA2823. Designed to fit 1/16 Traxxas models.
Add extreme power and performance to your Traxxas vehicle with this high discharge, high capacity TURNIGY nano-tech battery!
More than just a fancy name. TURNIGY nano-tech lithium polymer batteries are built with an LiCo nano-technology substrate complex greatly improving power transfer making the oxidation/reduction reaction more efficient, this helps electrons pass more freely from anode to cathode with less internal impedance.
In short; less voltage sag and a higher discharge rate than a similar density lithium polymer (non nano-tech) battery.
For those that love graphs, it means a straighter, longer curve. For pilots it spells stronger throttle punches and unreal straight-up performance.
Excellent news for 3D pilots!
Unfortunately with other big brands; numbers, ratings and graphs can be fudged. Rest assured, TURNIGY nano-techs are the real deal, delivering unparalleled performance!
Spec.
Capacity: 1400mAh
Voltage: 3S1P / 3 Cell / 11.1V
Discharge: 40C Constant / 80C Burst
Weight: 118.7g (including plug & case)
Dimensions: 87 x 19 x 34mm
Discharge Plug: TRX plug
*The nano-core technology in lithium ion batteries is the application of nanometer conductive additives.
1) The nanometer conductive additives form ultrastrong electron-conducting networks in the electrodes which can increase electronic conductivity.
2) These additives create a superstrong ability for imbibition in the carrier liquid to supply more ion channels. This improves the ability of ion transmission and ion diffusion.
Through improving electronic conductivity and ion transmission, the impedance is reduced and the polarization of high rate discharge decreases greatly.
Advantages over traditional Lipo batteries;
-Power density reaches 7.5 kw/kg.
-Less Voltage sag during high rate discharge, giving more power under load.
-Internal impedance can reach as low as 1.2mω compared to that of 3mω of a standard Lipoly.
-Greater thermal control, pack usually doesnt exceed 60degC
-Thickness swelling during heavy load doesnt exceed 5%, compared to 15% of a normal Lipoly during heavy load.
-Higher capacity during heavy discharge. More than 90% at 100% C rate.
-Fast charge capable, up to 15C on some batteries.
