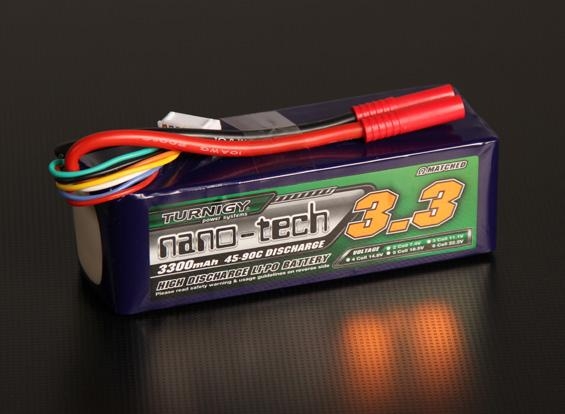

Spec.
Capacity: 3300mAh
Voltage: 6S1P / 6S Cell / 22.2V
Discharge: 45C Constant / 90C Burst
Weight: 565g (including wire, plug & case)
Dimensions: 135x45x44mm
Balance Plug: JST-XH
Discharge Plug: 4mm Bullet-connector
Suited to the following models:
6S: LOGO500, GAUI EP425/550/X5
6S x 2: MIKADO LOGO500SE/600/600SE, ALIGN T-REX600, HENSELEIT TDR, Compass Atom 6HV, Outrage Fusion 50
* The nano-core technology in lithium ion batteries is the application of nanometer conductive additives.
1) The nanometer conductive additives form ultrastrong electron-conducting networks in the electrodes which can increase electronic conductivity.
2) These additives create a superstrong ability for imbibition in the carrier liquid to supply more ion channels. This improves the ability of ion transmission and ion diffusion.
Through improving electronic conductivity and ion transmission, the impedance is reduced and the polarization of high rate discharge decreases greatly.
Advantages over traditional Lipo batteries:
-Power density reaches 7.5 kw/kg.
-Less Voltage sag during high rate discharge, giving more power under load.
-Internal impedance can reach as low as 1.2mω compared to that of 3mω of a standard Lipoly.
-Greater thermal control, pack usually doesnt exceed 60degC
-Thickness swelling during heavy load doesnt exceed 5%, compared to 15% of a normal Lipoly during heavy load.
-Higher capacity during heavy discharge. More than 90% at 100% C rate.
-Fast charge capable, up to 15C on some batteries.
-Longer Cycle Life, almost double that of standard lipoly technology
