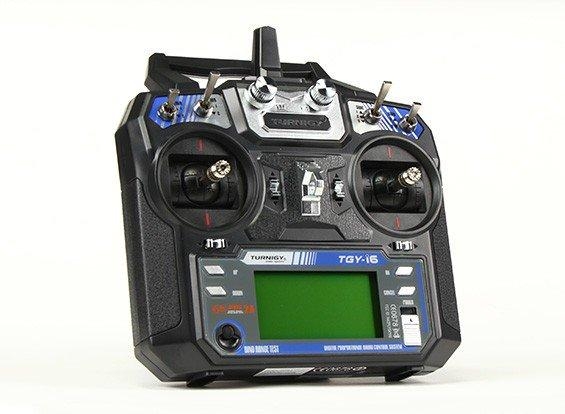

The Turnigy TGY-i6 is a great entry level 6-channel telemetry 2.4ghz computer transmitter that uses solid and reliable Automatic Frequency Hopping Digital System (AFHDS) spread spectrum technology. The Turnigy TGY-i6 has both a nice quality look and feel, while the programming is simple to use. The TGY-i6 also has an impressive list of features and includes a TGY-iA6 6-channel receiver. Suitable for both model Heli and Airplane, the Turnigy TGY-i6 is a superb budget computer radio for both new pilots and experienced pilots alike!
The ultra slim case design ergonomically fits your hands leading to less hand fatigue especially during long flights. Digital trims, backlit LCD screen, and simple programming give the TGY-i6 a modern feel with all the features you want. With a low profile antenna, the TGY-i6 is easy to store and no worries about breaking it. Adjustable length sticks, and a loop for attaching a neck strap round out the list of comfort features this radio offers. For changing flight modes or multiple flap position options, the TGY-i6 has a 3-position switch, as well as two adjustable knobs.
Expand the capabilities of your models or just know what is going on with the optional telemetry receivers and variety of sensors. Normally you would have to spend hundreds of dollars to get a transmitter with this capability. Not so with the availability of the TGY-i6.
For the price, the features the TGY-i6 offers make this one of the best radios available dollar for dollar.
Features:
• Entry level 6 channel 2.4ghz radio with telemetry capability
• Dual Rate/Trims/Gear/Flap/Gyro Gain Adjust/Flight Mode/Throttle Hold/Hover Pitch Switches
• Easy to use Programming & Navigation Buttons
• Supports Heli/Standard Wing/Elevon/V-Tail
• 20 Model Memory
• 8 Character Model Name
• Trainer and charging ports

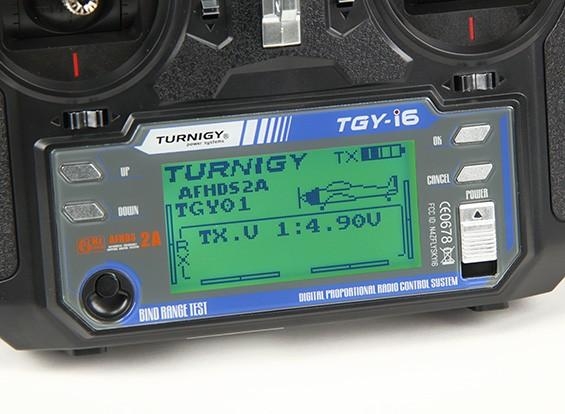

• Backlit LCD Screen displays real time transmitter and receiver voltage
• 4 Stick Mode Selectable
• Optional telemetry receivers and sensors available separately
Basic Programm Functions:
Dual Rates
Sub Trim
Travel Adjust
Channel Reverse
Swash Mix
Gyro Sensitivity
Throttle Curve
Monitor
Pitch Curve
Throttle Hold
Model Name
Timer
Turnigy TGY-i6 Transmitter Specs:
Frequency: 2.4ghz ISM Frequency Range
Modulation: GFSK
Spread Spectrum Mode: AFHDS 2A and AFHDS
Band: 142
Number of Frequency Channels: 20
Output Power: <=20dbm
Working Current: <=100mA
Working Voltage: 1.5v x 4 AA
Dimensions: 174x89x190mm
Weight: 392g
Resolution: 1024 bit
Stick Mode: Mode 2 (Throttle Left)
Turnigy iA6 Receiver Specs:
Channel: 6
Frequency: 2.4g ISM Frequency Range
Power: 4.5V~6.6V/<30ma
Net Weight: 6.4g
Dimensions: 40.4x21.1x7.35mm
Requires:
4 x AA Type Battery For Operation
*Note: Receiver power telemetry feedback is available using the standard i6 receiver. To use telemetry sensors such as the RPM/Speed (TGY-CPD01 magnetic or TGY-CPDO2 Optical), or Temperature (TGY – CTM01) you will need to use the TGY-iA10 receiver or the Turnigy TGY iA6B V2 full range receiver to enable all flight telemetry information functions listed in the Accessories listing below. If you need more channels for larger airplanes, the TGY-CEV01 can help you to expand from one channel to four more channels.
