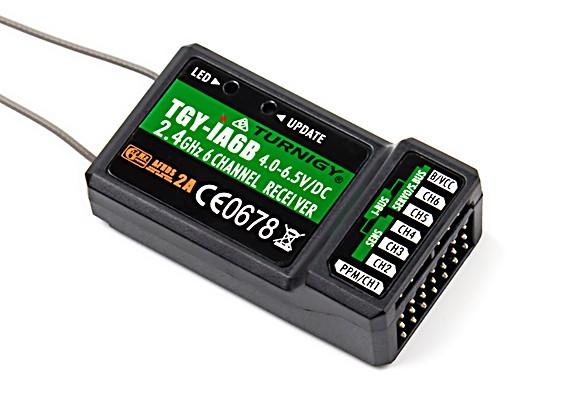

This enhanced V2 version of the Turnigy-iA6B receiver is a perfect match for the Turnigy TGY-i6s transmitter. Now capable of iBUS, SBUS, PPM and PWM for enhanced control.
This compact 6 channel receiver is great for any model using up to 6 channels and, with a range exceeding 500 meters, it can be considered to be full range for all but the most demanding of applications.
The receiver has end-on connectors to enable a neat installation in tight spaces. Built in connectors allow you to use any of the optional Turnigy telemetry sensors.
Dual antennas give the iA6B excellent reception and interference rejection capability.
With easy binding, compact dimensions, optional telemetry and dual antennas, it's difficult to imagine what else we could have added!
Features:
• Reliable, interference free 2.4GHz AFHDS 2A signal operation
• iBUS, SBUS, PPM and PWM
• Compact, lightweight design
• Dual antennas for reliable, interference-free operation
• Connection ports for use with optional telemetry sensors
Specs:
Channels: 6
Frequency: 2.4GHz ISM Frequency Range
Receive sensitivity: -105DBm
Frequency range: 2.4055-2.475 GHz
Band width: 500kHz
Band quantity: 140
Antenna: C130-RF-014
Transmitting power: <20dBm
Code type: GFSK
System: AFHDS2A
Sensitivity: 1024
Power: 4.0~6.5V DC
Distance: >500m
Function: Two-way communication, Multifunction extension
Output data: PPM, i.BUS, S.BUS, PWM
Data acquisition: yes (FUTABA)
PPM output: yes (CH1)
Channel data: Center position: 1500±10us, range: 1000~2000±10us
Wireless update: Yes
Color: Black
Certification: CE, FCC, RCM
