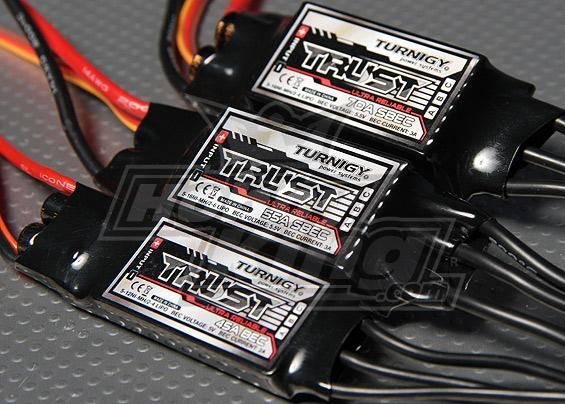

TURNIGY TRUST 45A LBEC Brushless Speed Controller

Turnigy® TRUST SBEC ESCs have a very flexible and broadly capable MCU, able to run all types of brushless motors.

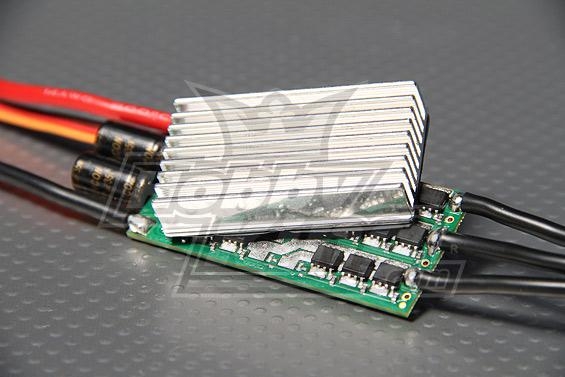

The large heatsink and simple PCB layout make heat dissapation consistant, enabling the ESC to be run at its limit, without failure.
The ESC is program-card and transmitter programmable with clear and easy to understand instructions included.
Default factory settings are;
Brake: off
Battery: LiPo Auto Detect
Low Voltage: 3.2v (power down motor)

Spec.
Max Motor Current: 45A
Max BEC Current: 2A
BEC Voltage: 5v (Linear)
LiPo: 2~4S
NiMH:5~12cells

Programming Options.
Battery Type
Forward/Reverse
Soft Start
LV Setting (Ignore, Reduce Power, Stop Motor)
Timing (Auto, Med, High)
Switching (8,16kHz)
Factory Restore
