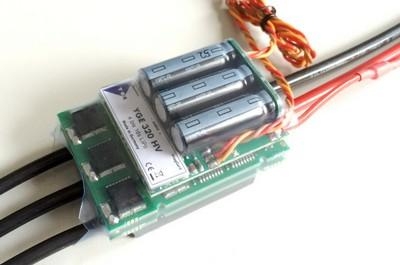

YGE 320HV 2V ESC 16S / S24

YGE top class ESC for 800 and more Helicopters up to 14S. German engineering and

YGE 320HV 2V ESC 16S / S24

Very good governor mode allowing low and high rpm flight condition with the same pinion.

Specifications:

• 320A maximum continuous full power current with adequate cooling.
• 460A peaks
• 4 to 14s LiPo, with under voltage protection by power reduction.
• 12 to 42 cells NiMH, with under voltage protection by power reduction.
• disconnect-able under voltage detection.
• Optocoupler.
• Speed regulation (Governor mode).
• Soft start.
• Active free-wheel, allowing unlimited part load operation.
• Automatic or 6 step adjustable timing.
• Continuously adjustable F3A brake.
• 3 steps adjustable regular back EMF brake.
• Switching rate: 8 to 16 kHz
• Speed limit: 240,000 RPM (2-Pole motors)
• Temperature and overload warning.
• Anti sparkling circuit: reduces connection sparkles
• Programming with the ProgCard II
• Weight 208g, 300g with cables
• Dimension 69mm x 53mm x 50mm
